Aluminum alloy engine bedplate side walls are structural casting sections used in automotive engine lower-frame and crankcase-related assemblies. Based on the sample workpiece, this part includes a long side-wall body, multiple round openings, raised bosses, side mounting holes, recessed pockets, local window edges and irregular casting contours, making post-casting deburring more complex than simple aluminum parts.
This robotic deburring solution is designed for aluminum alloy engine bedplate side wall castings with typical dimensions around 350–600 mm in length, depending on the engine model. It helps remove burrs, flash, parting line residues and sharp edges from side-wall contours, hole openings, boss boundaries, local cavities and window edges while improving finishing consistency and reducing manual deburring workload.
What Is an Aluminum Alloy Engine Bedplate Side Wall?
An aluminum alloy engine bedplate side wall is a cast structural section used around the lower engine block, engine bedplate or crankcase support area. It usually provides side support, mounting points, cavity boundaries and connection interfaces for engine or powertrain components.
Based on the sample image, this workpiece has a long vertical side-wall shape, several circular holes, raised cylindrical bosses, small mounting holes, recessed cavities, side openings and uneven outer edges. After casting and rough trimming, burrs, flash, parting lines or sharp edges may remain around the side contour, hole edges, boss transitions, cavity openings and local window boundaries. For this type of workpiece, the main finishing requirement is robotic deburring, edge rounding and local surface cleanup rather than decorative polishing.
| Item | Details |
|---|---|
| Workpiece Name | Aluminum Alloy Engine Bedplate Side Wall |
| Chinese Name | 铝合金发动机底板侧壁 |
| Typical Size | Around 350–600 × 150–300 × 80–180 mm, depending on model |
| Material | Aluminum Alloy Casting |
| Main Process | Robotic Deburring |
| Assisted Processes | Edge Rounding, Local Grinding, Flash Removal, Surface Cleanup |
| Key Processing Areas | Side-wall outer contour, round hole edges, mounting holes, boss edges, recessed cavity edges, local window openings, parting line areas |
| Protected Areas | Mounting faces, sealing interfaces, precision holes, machined surfaces, fitting areas |
| Finishing Goal | Remove burrs, flash, sharp edges and parting line residues while keeping functional surfaces protected |
Typical Finishing Challenges of Aluminum Alloy Engine Bedplate Side Wall
An aluminum alloy engine bedplate side wall is difficult to finish because its burrs are distributed across many side-facing features. The workpiece has long edges, curved transitions, holes in different positions, raised bosses and recessed pocket areas. These features require different tool angles and cannot be processed effectively with only one manual deburring posture.
Manual deburring is especially unstable around side holes, boss edges and recessed cavities. Operators may miss small burrs inside pocket edges or over-process exposed side-wall areas. Since aluminum alloy is relatively soft, excessive tool pressure can leave visible tool marks, remove too much base material or affect nearby fitting surfaces.
| Common Problem | Specific Area | Impact |
|---|---|---|
| Casting Flash / Parting Lines | Long side-wall contour, outer edges, side flanges | Affects edge consistency and appearance |
| Sharp Edges | Round openings, mounting holes, local windows | Creates handling and assembly risks |
| Residual Burrs | Boss boundaries, recessed cavity edges, side pocket transitions | Causes unstable finishing quality |
| Local Gate Residues | Gate-cut or trimming areas on the side wall | Requires heavier local material removal |
| Manual Variation | Repeated holes, side edges and cavity openings | Leads to inconsistent results between operators |
| Sensitive Functional Areas | Mounting faces, precision holes, sealing or fitting interfaces | Risk of damage during manual deburring |
Robotic Deburring Process for Aluminum Alloy Engine Bedplate Side Wall
A robotic deburring cell for aluminum alloy engine bedplate side walls should be designed around side access, fixture stability, tool angle control and protected-surface management. The process must remove burrs and sharp edges from the side-wall contour, holes, bosses and cavity boundaries while avoiding damage to mounting faces, precision holes and machined interfaces.
For engine bedplate side wall castings with typical dimensions around 350–600 mm in length, the process usually includes workpiece positioning, program selection, protected-area confirmation, side contour deburring, hole and boss edge treatment, recessed cavity finishing, inspection and unloading. Flexible deburring tools, chamfering tools and small grinding heads can be selected according to the actual burr type and access condition.
| Step | Process | Purpose | Tool / System |
|---|---|---|---|
| 1 | Loading and Positioning | Secure the side-wall casting for stable access | Dedicated fixture |
| 2 | Program Selection | Match the correct side-wall model and robot path | HMI / Robot program |
| 3 | Protected Area Confirmation | Define no-grind zones and protected interfaces | Fixture logic / Program setting |
| 4 | Side Contour Deburring | Remove flash and sharp edges from the side profile | Flexible deburring tool |
| 5 | Hole and Boss Edge Treatment | Deburr round holes, mounting holes and raised bosses | Chamfering tool / Deburring spindle |
| 6 | Recessed Cavity and Window Edge Finishing | Process pocket edges, local openings and inner transitions | Small grinding head / Compliant tool |
| 7 | Quality Inspection | Check burr removal and protected areas | Manual or visual inspection |
| 8 | Unloading and Cleaning | Remove chips and transfer the workpiece | Air blow / Vacuum cleaning |
Step 1: Loading and Positioning
The aluminum alloy engine bedplate side wall is loaded into a dedicated fixture that supports the casting from stable non-critical areas. Because the part has a long side-wall shape, uneven thickness and several raised bosses, the fixture must prevent movement and vibration during deburring.
Stable positioning allows the robot to reach the side contour, hole edges, boss boundaries and recessed pockets with repeatable tool posture. It also helps protect machined mounting surfaces and precision holes from accidental tool contact.
Step 2: Program Selection
After the workpiece is fixed, the operator selects the corresponding robot program through the HMI. This is important when the same robotic cell handles similar side-wall models with different hole layouts, boss positions or cavity structures.
The selected program controls the processing order, tool angle, contact force, feed speed and safe approach path. Saved programs help maintain consistent deburring quality across repeated batches and reduce dependence on individual operator experience.
Step 3: Protected Area Confirmation
Before deburring begins, the system confirms the protected areas of the workpiece. For an engine bedplate side wall, these protected areas usually include mounting faces, sealing interfaces, precision holes, machined bosses and fitting surfaces.
This step is important because burr-prone edges are often very close to functional surfaces. The robot should remove burrs from the boundary of holes and cavities while keeping the tool away from surfaces that affect assembly accuracy or sealing performance.
Step 4: Side Contour Deburring
The robot processes the long side-wall contour where flash, parting line residues and sharp edges are commonly found. These areas may include straight outer edges, curved transitions, side flanges and small local protrusions.
A flexible deburring tool is suitable for this step because it can follow minor casting variation while maintaining controlled contact pressure. The robot path should follow the actual side profile and remove raised burrs without over-cutting the aluminum base material.
Step 5: Hole and Boss Edge Treatment
The sample side-wall casting includes multiple circular holes, small mounting holes and raised bosses. Burrs around these features can affect assembly preparation, bolt seating or downstream machining operations.
A chamfering tool, deburring spindle or flexible abrasive tool can be used for hole-edge treatment. The robot approaches each hole or boss from the correct angle and processes the edge with repeatable depth and pressure. This makes hole deburring more stable than manual hand-tool operation.
Step 6: Recessed Cavity and Window Edge Finishing
Recessed pockets, local openings and side-window edges are more difficult to process because the tool must enter narrow or uneven areas. Burrs may remain along pocket boundaries, inner transitions and small cavity edges.
A small grinding head or compliant deburring tool can be used for these local features. The robot can divide the side-wall cavities into several processing zones and finish each edge with controlled movement. This reduces missed burrs in hidden or recessed areas.

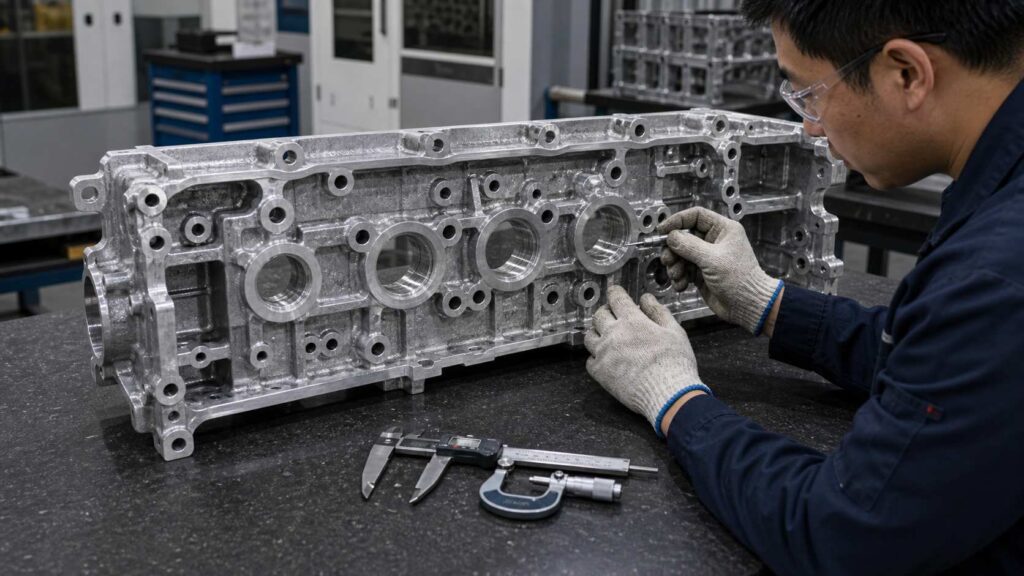

Step 7: Quality Inspection
After robotic deburring, operators inspect the side contour, round holes, mounting holes, boss edges, recessed pocket edges and local window openings. The inspection confirms that burrs and sharp edges have been removed and that protected surfaces remain undamaged.
Visual inspection can be combined with manual touch checks, sample gauge checks or camera-based inspection depending on production requirements. For repeated batches, inspection feedback can also be used to optimize tool wear compensation and local path adjustment.
Step 8: Unloading and Cleaning
After inspection, the workpiece is unloaded and transferred to the next process. Aluminum chips, dust and fine particles should be removed from hole edges, pocket areas and side cavities.
An enclosed robotic cell with dust extraction is recommended for aluminum alloy deburring. It helps control chips and particles, keeps the working area cleaner and reduces the operator’s direct exposure to repetitive manual deburring work.
Machining Difficulties and Solutions
| Challenge | Cause | Robotic Solution |
|---|---|---|
| Long Side-Wall Edge Burrs | Side contour creates long flash and parting line areas | Programmed side-contour deburring path |
| Multiple Hole Edge Burrs | Round holes and mounting holes retain sharp edges | Chamfering or flexible deburring routine |
| Boss Boundary Burrs | Raised bosses create circular and corner transitions | Local robotic deburring path around each boss |
| Recessed Pocket Burrs | Side cavities and pockets are difficult to access manually | Small tool access with divided local finishing zones |
| Functional Surface Protection | Mounting, sealing and precision areas must not be damaged | Protected zones excluded from robot paths |
| Aluminum Material Sensitivity | Aluminum alloy can be marked by excessive tool pressure | Controlled contact force and suitable tool selection |
Difficulty 1: Long Side-Wall Contour and Parting Line Residues
The engine bedplate side wall has a long outer profile with straight edges, curved corners and local protrusions. Flash and parting line residues may appear continuously along the side contour after casting and trimming.
The solution is to use a programmed side-contour deburring path. This allows the robot to follow the side-wall profile with stable tool contact and remove burrs more consistently than manual operation.
Difficulty 2: Repeated Hole and Mounting Edge Burrs
The workpiece contains several round openings and mounting holes distributed along the side wall. Burrs around these holes may affect assembly preparation and can be difficult to remove uniformly by hand.
The solution is to use a chamfering or flexible deburring routine for each hole. The robot repeats the same tool angle, entry path and edge-contact condition, which improves consistency across all hole positions.
Difficulty 3: Raised Bosses and Circular Edge Transitions
Raised bosses create circular boundaries and small transition areas where burrs can remain after casting. Manual deburring around these features may cause uneven edge rounding or tool marks.
The solution is to create local robotic paths around each boss. The robot can process the boss boundary with controlled pressure, removing burrs while preserving the original boss geometry.
Difficulty 4: Recessed Cavity and Pocket Accessibility
The side-wall casting includes recessed pockets and local cavity edges that are not easy to access with standard manual tools. Burrs inside these areas are often missed or processed inconsistently.
The solution is to use a small grinding head or compliant deburring tool for local finishing. The robot divides pocket areas into separate zones and uses controlled tool posture to remove burrs from cavity edges and inner transitions.
Difficulty 5: Protecting Mounting and Machined Interfaces
Engine bedplate side walls include mounting faces, precision holes, sealing surfaces and machined fitting areas. These surfaces must not be scratched or over-ground during deburring.
The solution is to define protected zones in the robot program and fixture reference system. The robot removes burrs from nearby edges while keeping the deburring tool away from functional surfaces that influence assembly accuracy.
Manufacturing Case
Customer Background
An automotive aluminum casting manufacturer produces engine bedplate side wall components for engine lower-frame and crankcase-related assemblies. Before automation, operators manually removed burrs, flash and sharp edges from side contours, round holes, mounting holes, boss edges and recessed pockets.
As production volume increased, manual deburring became difficult to standardize. Some long side-wall edges were over-processed, while burrs around recessed pockets and small holes were sometimes missed. The customer wanted to improve deburring consistency, reduce manual workload and create a cleaner finishing process.
Technical Challenges
The workpiece had a long side-wall body with multiple circular holes, raised bosses, local cavities and uneven casting contours. Burrs appeared on both exposed side edges and recessed pocket boundaries, requiring different tool angles and local processing strategies.
The customer also needed to protect functional areas such as mounting faces, precision holes and machined interfaces. The robotic process had to remove burrs without damaging surfaces used for assembly, sealing or positioning.
Solution
The proposed solution used a six-axis industrial robot, a dedicated side-wall support fixture and a combination of deburring tools. A flexible deburring tool was used for long side contours, a chamfering tool or deburring spindle was used for hole edges, and a small grinding head was used for recessed pockets and boss transitions.
Protected areas were defined as no-grind zones in the robot program. The fixture positioned the workpiece securely and allowed the robot to access side features from the required angles. The workstation was designed as an enclosed cell with dust and chip collection for aluminum alloy deburring.
| Item | Configuration |
|---|---|
| Workpiece | Aluminum Alloy Engine Bedplate Side Wall |
| Chinese Name | 铝合金发动机底板侧壁 |
| Typical Size | Around 350–600 × 150–300 × 80–180 mm, depending on model |
| Main Process | Robotic Deburring |
| Assisted Process | Edge Rounding, Local Grinding, Flash Removal, Surface Cleanup |
| Robot | Six-Axis Industrial Robot |
| Tooling | Flexible deburring tool, chamfering tool, deburring spindle, small grinding head |
| Fixture | Dedicated Engine Bedplate Side Wall Support Fixture |
| Protection Strategy | Protected mounting faces, precision holes, sealing surfaces and machined interfaces |
| Dust Control | Enclosed Cell with Aluminum Chip and Dust Collection |
Implementation Results
The robotic cell took over repetitive deburring work on the long side contour, round holes, mounting holes, boss edges, local pockets and window openings. Operators mainly handled loading, unloading, inspection and tool maintenance, which reduced direct manual deburring intensity and made repeated batches more stable.
The enclosed cell also improved chip and dust control during aluminum casting finishing. Instead of open manual deburring around the workpiece, aluminum chips and particles were collected inside the workstation, helping create a cleaner and more controlled finishing area.
| Result Area | Improvement |
|---|---|
| Side Contour Quality | More stable cleanup along long side-wall edges |
| Hole Edge Deburring | Better consistency around round holes and mounting holes |
| Boss Edge Treatment | Repeatable deburring around raised boss boundaries |
| Pocket Edge Finishing | Reduced missed burrs in recessed cavities and local openings |
| Parting Line Cleanup | Dedicated paths for repeated flash and parting line areas |
| Surface Protection | Lower risk of damage to mounting, sealing and precision surfaces |
| Labor Reduction | Reduced repetitive manual deburring workload |
| Production Stability | Saved programs for repeated side-wall casting batches |
| Workshop Environment | Cleaner finishing area with enclosed aluminum dust collection |
Customer Feedback
The customer reported that the robotic deburring cell made repeated engine bedplate side wall finishing more stable and reduced the manual effort required for side contour cleanup, hole-edge deburring and pocket-edge finishing. Operators could focus more on part handling, inspection and tool monitoring instead of continuous manual deburring.
Information Needed for a Robotic Grinding Proposal
To recommend a suitable robotic deburring cell for your aluminum alloy engine bedplate side wall, we usually need the part drawing, material grade, casting weight, photos of burrs, flash, parting lines or gate residues, required deburring areas, protected surfaces, current manual deburring cycle time and annual production volume.
These details help our engineering team evaluate fixture design, robot reach, tool selection, dust collection layout and process feasibility. For aluminum alloy engine structural castings, it is especially important to identify which areas require burr removal and which mounting, sealing or precision interfaces must be protected during robotic deburring.
FAQ
Q1: Is this workpiece an engine bedplate side wall?
Yes. Based on the sample structure, this workpiece can be described as an aluminum alloy engine bedplate side wall. It has typical features such as a long side-wall body, multiple round openings, raised bosses, local pockets and irregular casting contours.
Q2: Why is robotic deburring suitable for this workpiece?
Robotic deburring is suitable because the workpiece has many repeated side edges, hole openings, boss boundaries and recessed pockets. A robot can follow programmed paths with stable tool posture and contact pressure, improving consistency compared with manual deburring.
Q3: What areas can the robot process on an engine bedplate side wall?
The robot can process the long side contour, round holes, mounting holes, boss edges, recessed pocket edges, local window openings, gate-cut areas and parting line positions. The exact processing areas should be confirmed according to the drawing and actual burr distribution.
Q4: Does this aluminum alloy side wall require polishing?
In most cases, this part does not require decorative polishing. The main requirement is deburring, edge rounding, flash removal and local surface cleanup. The purpose is to remove burrs and sharp edges while protecting functional surfaces.
Q5: How are protected surfaces controlled during deburring?
Protected surfaces are controlled through fixture positioning, robot path planning and no-grind zones in the program. Mounting faces, sealing surfaces, precision holes and machined interfaces are excluded from tool contact areas to reduce the risk of damage.
Q6: Can one robotic cell handle similar side-wall models?
Yes. One robotic cell can often handle similar aluminum alloy engine bedplate side wall models if the fixture, robot reach and tool system are designed for model variation. Different robot programs can be saved for different part numbers.
Conclusion
Aluminum alloy engine bedplate side walls have long side contours, multiple holes, raised bosses, recessed pockets and irregular casting transitions, making manual deburring difficult to standardize. A robotic deburring solution helps manufacturers remove burrs, flash, sharp edges and parting line residues while improving finishing consistency and protecting key functional areas.
If your engine bedplate side wall production still relies on manual side contour deburring, hole-edge cleanup or pocket-edge finishing, Contact Us for a customized robotic solution. You can also explore our Automotive & EV applications and Equipment to learn more about our robotic finishing systems.
