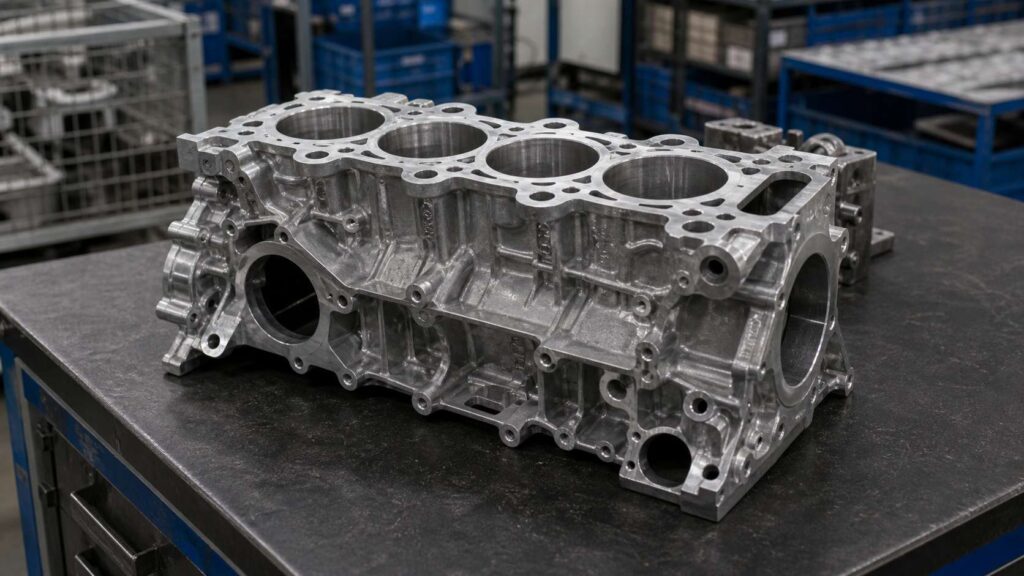

What Is an Aluminum Alloy Engine Cylinder Block?
An aluminum alloy engine cylinder block is the main structural body of an engine. It supports cylinder bores, crankshaft-related areas, coolant passages, lubrication passages, mounting interfaces and surrounding powertrain components. Compared with an engine cylinder head, which is located above the block and includes combustion chamber and port features, the cylinder block carries the main engine structure and lower crankcase-related loads.
Based on typical sample structures, this workpiece has multiple cylinder bore openings, crankcase cavity areas, side-wall structures, water jacket openings, oil passages, bolt holes, reinforced ribs and machined mounting surfaces. After casting, trimming and rough machining, burrs, flash, parting lines, gate residues or sharp edges may remain around bore boundaries, water jacket openings, oil passage edges, outer contours, mounting holes and cavity transitions. For this type of workpiece, the main finishing requirement is robotic deburring, controlled local grinding and edge cleanup rather than decorative polishing.
| Item | Details |
|---|---|
| Workpiece Name | Aluminum Alloy Engine Cylinder Block |
| Chinese Name | 铝合金发动机缸体 |
| Typical Size | Around 400–700 × 250–450 × 250–500 mm, depending on engine model |
| Material | Aluminum Alloy Casting |
| Main Process | Robotic Deburring and Grinding |
| Assisted Processes | Bore Edge Deburring, Flash Removal, Local Surface Cleanup, Edge Rounding |
| Key Processing Areas | Outer contours, cylinder bore edges, crankcase openings, water jacket openings, oil passage edges, mounting holes, ribs, side-wall transitions, gate-cut areas |
| Protected Areas | Cylinder bore surfaces, main bearing areas, sealing faces, machined mounting surfaces, precision holes, locating interfaces |
| Finishing Goal | Remove burrs, flash, sharp edges and local residues while protecting precision engine functional surfaces |
Typical Finishing Challenges of Aluminum Alloy Engine Cylinder Block
An aluminum alloy engine cylinder block is difficult to finish because it has many functional openings and structural transitions distributed across a large three-dimensional casting. Burrs may appear around cylinder bores, water jacket openings, oil passages, crankcase windows, bolt holes, outer edges and reinforced rib intersections. These areas require different tool angles and different levels of material removal.
Manual deburring and grinding can be unstable because operators must frequently change posture around large cavities, side walls and bore-related features. Some burrs inside crankcase openings or water jacket edges may be missed, while exposed edges may be over-ground. Since the cylinder block includes precision surfaces and machined interfaces, uncontrolled manual grinding may damage bore-related areas, sealing faces or locating surfaces.
| Common Problem | Specific Area | Impact |
|---|---|---|
| Casting Flash / Parting Lines | Outer contour, side walls, crankcase opening edges | Affects edge consistency and surface cleanup quality |
| Gate Residues | Gate-cut areas on the casting body or side-wall sections | Requires controlled local grinding |
| Sharp Edges | Cylinder bore openings, crankcase openings, mounting holes | Creates handling and assembly risks |
| Residual Burrs | Water jacket openings, oil passage edges, rib transitions | Causes unstable finishing quality and inspection issues |
| Manual Variation | Repeated holes, cavity edges and outer contours | Leads to inconsistent results between operators |
| Sensitive Functional Areas | Cylinder bores, main bearing areas, sealing faces, precision holes | Risk of damage during manual deburring or grinding |

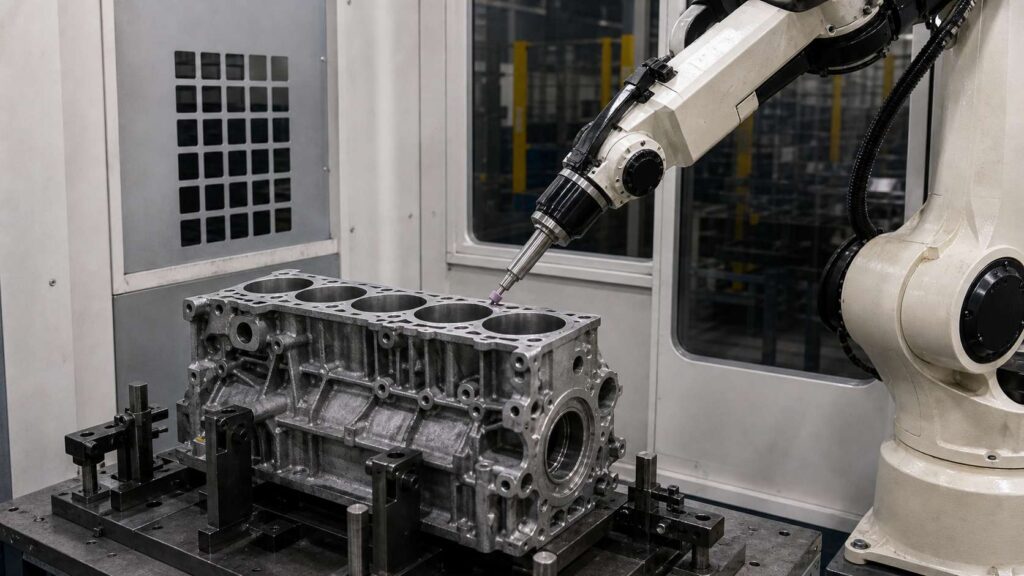

Robotic Deburring and Grinding Process for Aluminum Alloy Engine Cylinder Block

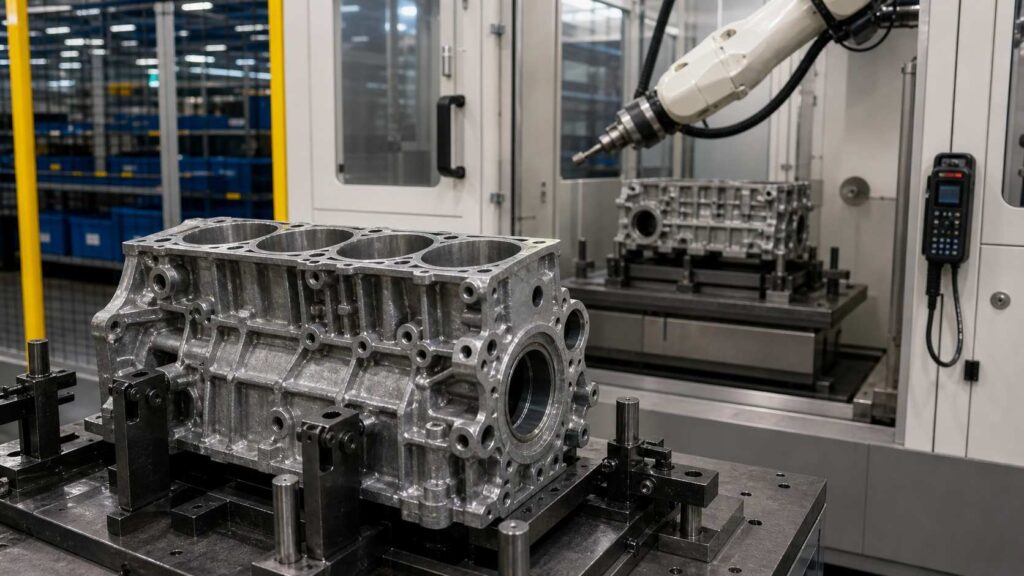

A robotic deburring and grinding cell for aluminum alloy engine cylinder blocks should be designed around part stability, multi-side accessibility, controlled material removal and protected-surface management. The process must remove burrs, flash and local residues from the block body, cavity edges, openings and holes while avoiding contact with cylinder bore surfaces, main bearing areas, sealing faces and machined reference surfaces.
For aluminum alloy engine cylinder blocks with typical dimensions around 400–700 mm in length, the process usually includes loading, program selection, protected-area confirmation, outer contour grinding, bore and opening edge deburring, water and oil passage cleanup, crankcase edge finishing, inspection and unloading. Different tools can be used for different areas, including abrasive grinding tools, flexible deburring tools, chamfering tools and small finishing heads.
| Step | Process | Purpose | Tool / System |
|---|---|---|---|
| 1 | Loading and Positioning | Secure the cylinder block for stable multi-side access | Dedicated fixture |
| 2 | Program Selection | Match the correct block model and robot path | HMI / Robot program |
| 3 | Protected Area Confirmation | Define bore, bearing, sealing and precision no-grind zones | Fixture logic / Program setting |
| 4 | Outer Contour and Parting Line Grinding | Remove flash and residues from external casting edges | Abrasive grinding tool |
| 5 | Cylinder Bore Edge Deburring | Remove burrs and sharp edges around bore boundaries | Flexible deburring tool |
| 6 | Water Jacket and Oil Passage Cleanup | Clean small passage openings and local edges | Small deburring tool / Deburring spindle |
| 7 | Crankcase Opening and Rib Transition Finishing | Process cavity edges, rib roots and internal transitions | Small grinding head / Compliant tool |
| 8 | Mounting Hole and Boss Edge Treatment | Deburr bolt holes, bosses and local mounting features | Chamfering tool / Deburring spindle |
| 9 | Quality Inspection | Check burr removal and protected functional areas | Manual or visual inspection |
| 10 | Unloading and Cleaning | Remove chips and transfer the cylinder block | Air blow / Vacuum cleaning |
Step 1: Loading and Positioning
The aluminum alloy engine cylinder block is loaded into a dedicated fixture that supports the casting from stable non-critical areas. Because the workpiece is larger and heavier than many cover or side-wall castings, fixture rigidity is important for stable robotic grinding and deburring.
The fixture should allow the robot to access the outer contour, bore edges, crankcase openings, water jacket openings, oil passage edges and mounting holes. Stable positioning also helps maintain safe clearance from protected cylinder bore surfaces, main bearing areas and machined interfaces.
Step 2: Program Selection
After the cylinder block is fixed, the operator selects the correct robot program through the HMI. This is important because cylinder block models may vary in cylinder count, bore layout, mounting hole positions, side-wall shape and crankcase structure.
The selected program defines the processing sequence, tool type, robot posture, feed rate, contact force and protected zones. Saved programs help maintain consistent deburring and grinding results across repeated production batches.
Step 3: Protected Area Confirmation
Before processing begins, the system confirms the protected areas of the cylinder block. These usually include cylinder bore surfaces, main bearing support areas, sealing faces, machined mounting surfaces, locating holes, precision holes and reference planes.
This step is critical because many burr-prone edges are close to precision features. The robot should remove burrs from edge boundaries and casting transitions while keeping abrasive tools away from surfaces that affect engine assembly, sealing and dimensional accuracy.
Step 4: Outer Contour and Parting Line Grinding
The robot processes the external casting edges where flash, parting line residues, trimming marks or local casting defects may remain. These areas may include side walls, outer flanges, corner transitions, mounting bosses and gate-cut sections.
An abrasive grinding tool can remove raised defects with controlled feed speed and contact pressure. For aluminum alloy cylinder blocks, the process should avoid excessive pressure that may create deep tool marks or remove too much base material from the casting.
Step 5: Cylinder Bore Edge Deburring
Cylinder bore openings are key areas on an engine cylinder block. Burrs or sharp edges around bore boundaries may appear after casting, trimming or rough machining, but the bore surface itself must be protected.
A flexible deburring tool can clean the bore edge with controlled pressure and a programmed circular path. The robot should treat only the edge boundary and avoid contact with precision bore surfaces or machined functional areas.
Step 6: Water Jacket and Oil Passage Cleanup
Water jacket openings and oil passage edges often contain small burrs or residual casting particles. These openings may be located on different sides of the cylinder block and may require different tool orientations.
A small deburring tool or deburring spindle can process each passage opening with repeatable posture. This helps reduce missed burrs and improves consistency compared with manual cleaning of multiple small passage features.
Step 7: Crankcase Opening and Rib Transition Finishing
The crankcase cavity and lower block structure contain internal edges, window boundaries, ribs and reinforced transitions. Burrs may remain around cavity openings and rib roots where manual tools are difficult to control.
A small grinding head or compliant deburring tool can be used for these local areas. The robot can divide the crankcase and rib structure into several finishing zones and process each transition with stable posture, reducing residual burrs in hidden or recessed areas.
Step 8: Mounting Hole and Boss Edge Treatment
Cylinder blocks include many mounting holes, threaded holes, bosses and local connection features. Burrs around these areas may affect bolt insertion, assembly seating or downstream inspection.
A chamfering tool or deburring spindle can process each hole opening with repeatable depth and angle. The robot repeats the same routine across hole groups, improving hole-edge consistency and reducing manual variation.

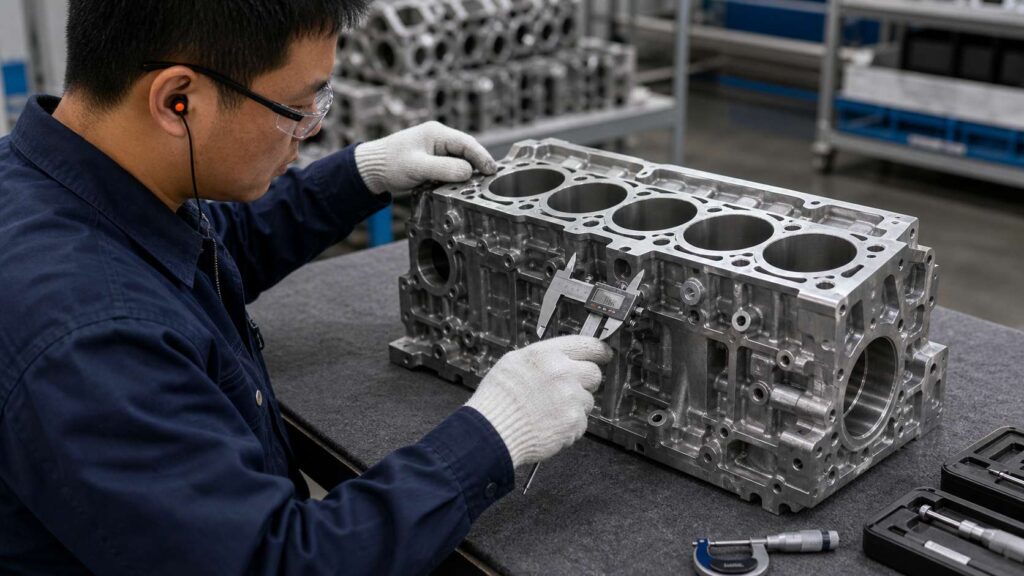

Step 9: Quality Inspection
After robotic deburring and grinding, operators inspect the outer contours, bore edges, water jacket openings, oil passage edges, crankcase openings, mounting holes, rib transitions and gate-cut areas. The inspection confirms that burrs and sharp edges have been removed and that protected surfaces remain undamaged.
Depending on production requirements, inspection can include visual checks, manual touch checks, sample gauges or camera-based verification. Inspection feedback can also support tool wear compensation, local path optimization and maintenance planning.
Step 10: Unloading and Cleaning
After inspection, the cylinder block is unloaded and transferred to the next production process. Aluminum chips and fine particles should be removed from bore areas, water jackets, oil passages, crankcase cavities and mounting holes.
An enclosed robotic cell with aluminum chip and dust collection is recommended for cylinder block deburring and grinding. It helps improve cleanliness, reduce operator exposure and create a more controlled finishing environment than open manual grinding.
Machining Difficulties and Solutions
| Challenge | Cause | Robotic Solution |
|---|---|---|
| Large Casting Handling | Cylinder blocks are larger and heavier than cover components | Dedicated fixture and stable robotic positioning |
| Bore Edge Burrs | Cylinder bore boundaries require edge cleanup but bore surfaces must be protected | Controlled circular deburring path with no-grind bore surface zones |
| Water / Oil Passage Burrs | Small repeated passage openings retain burrs and particles | Small tool access with local deburring routines |
| Crankcase Opening Burrs | Internal cavity edges and window boundaries are difficult to reach manually | Divided cavity finishing zones with compliant tools |
| Gate Residue Removal | Local gate-cut sections contain thicker residual stock | Dedicated local grinding path and stock-removal tool |
| Functional Surface Protection | Bores, bearing areas and sealing faces must not be damaged | Protected-zone programming and accurate fixture reference |
Difficulty 1: Large Cylinder Block Positioning and Access
An engine cylinder block is larger and more three-dimensional than a cover, side wall or small frame casting. The robot must reach outer contours, bore edges, side openings, lower crankcase areas and multiple holes without losing tool stability.
The solution is to use a dedicated cylinder block fixture with stable support and repeatable positioning. This allows the robot to approach different processing areas with predictable posture while reducing vibration during grinding and deburring.
Difficulty 2: Cylinder Bore Edge Deburring Without Bore Damage
Cylinder bore openings may have burrs or sharp edges around the boundary, but the bore surface itself is a precision functional area. Manual deburring can be risky if the tool slips or cuts into the bore surface.
The solution is to use a controlled circular deburring path with defined no-grind zones. The robot removes burrs from the bore edge while keeping the tool away from the precision bore wall and related machined surfaces.
Difficulty 3: Water Jacket and Oil Passage Burr Removal
Water jacket openings and oil passage edges are often small, repeated and distributed across different surfaces. These areas may retain burrs or casting particles that are difficult to remove consistently by hand.
The solution is to use a small deburring tool or spindle with local routines for each opening. The robot processes each passage edge with repeatable angle and depth, reducing missed burrs and improving inspection consistency.
Difficulty 4: Crankcase Cavity and Rib Transition Cleanup
The crankcase cavity contains window edges, internal transitions, ribs and lower structural areas. Burrs in these recessed zones are difficult for operators to access and may require frequent tool angle changes.
The solution is to divide the crankcase cavity into local finishing zones. A small grinding head or compliant tool can clean rib roots, cavity edges and inner transitions with stable posture and controlled contact force.
Difficulty 5: Protecting Main Bearing and Sealing Interfaces
Cylinder blocks include main bearing-related areas, sealing faces, precision holes and machined mounting surfaces. These surfaces are close to burr-prone edges but must not be scratched or over-ground.
The solution is to define all precision features as protected zones in the robot program. The robot processes only the required burr locations and keeps abrasive tools away from functional interfaces that affect assembly accuracy and engine performance.
Manufacturing Case
Customer Background
An automotive aluminum casting manufacturer produces engine cylinder blocks for passenger vehicle and powertrain assembly applications. Before automation, operators manually removed burrs, flash, local casting residues and sharp edges from outer contours, bore openings, water jacket holes, oil passages, crankcase openings and mounting holes.
As production volume increased, manual deburring and grinding became difficult to standardize. Some small passage edges and internal cavity areas were under-processed, while exposed outer edges could be over-ground by different operators. The customer wanted to improve finishing consistency, reduce manual workload and better protect precision engine surfaces.
Technical Challenges
The workpiece had multiple cylinder bore openings, crankcase cavities, water jacket openings, oil passages, mounting holes, bosses, ribs and large outer contours. Burrs were distributed across both exposed external edges and internal functional openings, requiring different tools and robot postures.
The main technical challenge was balancing material removal and functional surface protection. Gate-cut areas and parting line residues required local grinding, while cylinder bore surfaces, main bearing areas, sealing faces and precision holes needed to remain untouched.
Solution
The proposed solution used a six-axis industrial robot, a dedicated cylinder block support fixture and a multi-tool finishing system. The robot used an abrasive grinding tool for outer contour flash and local gate residues, a flexible deburring tool for cylinder bore edges, a small deburring spindle for water jacket and oil passage openings, and a chamfering tool for mounting holes and boss edges.
Protected cylinder bore surfaces, main bearing areas, sealing faces, machined pads and precision holes were defined in the robot program. The fixture held the cylinder block securely while allowing the robot to access multiple sides of the casting. An enclosed cell with aluminum chip and dust collection was used to control particles during robotic finishing.
| Item | Configuration |
|---|---|
| Workpiece | Aluminum Alloy Engine Cylinder Block |
| Chinese Name | 铝合金发动机缸体 |
| Typical Size | Around 400–700 × 250–450 × 250–500 mm, depending on engine model |
| Main Process | Robotic Deburring and Grinding |
| Assisted Process | Bore Edge Deburring, Passage Cleanup, Edge Rounding, Local Surface Cleanup |
| Robot | Six-Axis Industrial Robot |
| Tooling | Abrasive grinding tool, flexible deburring tool, small deburring spindle, chamfering tool, compliant finishing tool |
| Fixture | Dedicated Engine Cylinder Block Support Fixture |
| Protection Strategy | Protected cylinder bores, main bearing areas, sealing faces, machined surfaces and precision holes |
| Dust Control | Enclosed Cell with Aluminum Chip and Dust Collection |
Implementation Results
The robotic cell took over repetitive deburring and grinding work on outer contours, cylinder bore edges, water jacket openings, oil passage edges, crankcase cavity edges, mounting holes and local gate-cut areas. Operators mainly handled loading, unloading, inspection and tool maintenance, which reduced direct manual finishing intensity and made repeated batches more stable.
The controlled process also improved protection for precision engine surfaces. Instead of relying only on manual tool control, the robot followed saved paths with defined protected zones, reducing the risk of accidental contact near bore surfaces, bearing areas and sealing faces.
| Result Area | Improvement |
|---|---|
| Outer Contour Quality | More stable cleanup along casting edges and side-wall contours |
| Bore Edge Deburring | Controlled burr removal around cylinder bore boundaries |
| Passage Edge Cleanup | Better consistency around water jacket and oil passage openings |
| Crankcase Edge Finishing | Reduced missed burrs in cavity openings and rib transitions |
| Hole Edge Treatment | Repeatable deburring around mounting holes and boss edges |
| Gate / Parting Line Cleanup | Dedicated local paths for thicker casting residues |
| Functional Surface Protection | Lower risk of damage to bores, bearing areas and sealing faces |
| Labor Reduction | Reduced repetitive manual deburring and grinding workload |
| Production Stability | Saved programs for repeated cylinder block batches |
| Workshop Environment | Cleaner finishing area with enclosed aluminum chip collection |
Customer Feedback
The customer reported that the robotic deburring and grinding cell made repeated engine cylinder block finishing more stable and reduced the manual effort required for bore edge deburring, passage cleanup, crankcase edge finishing and local residue removal. Operators could focus more on loading, inspection and tool monitoring instead of continuous manual grinding around complex casting features.
Information Needed for a Robotic Grinding Proposal
To recommend a suitable robotic deburring and grinding cell for your aluminum alloy engine cylinder block, we usually need the part drawing, material grade, casting weight, photos of burrs, flash, passage residues or gate-cut areas, required processing areas, protected bore or bearing surfaces, current manual cycle time and annual production volume.
These details help our engineering team evaluate fixture design, robot reach, tool selection, chip collection layout and process feasibility. For aluminum alloy engine cylinder blocks, it is especially important to identify which bore edges, passage openings, cavity boundaries and outer contours require burr removal, and which cylinder bore surfaces, main bearing areas, sealing faces and precision holes must be protected during robotic finishing.
FAQ
Q1: Is an engine cylinder block the same as an engine cylinder head?
No. An engine cylinder block is the main engine body that supports cylinder bores, crankcase areas and lower engine structures. An engine cylinder head is mounted above the block and includes combustion chamber, port, valve-related and passage features.
Q2: Why is robotic deburring and grinding suitable for engine cylinder blocks?
Robotic deburring and grinding are suitable because cylinder blocks have many repeated bores, holes, passages, cavity edges and outer contours. A robot can follow programmed paths with controlled contact force, improving consistency compared with manual finishing.
Q3: What areas can the robot process on an engine cylinder block?
The robot can process outer contours, cylinder bore edges, water jacket openings, oil passage edges, crankcase opening edges, mounting holes, boss boundaries, rib transitions, parting line areas and local gate residues. The exact processing range should be confirmed based on the drawing and actual burr distribution.
Q4: Does this part require decorative polishing?
No. In most cases, engine cylinder blocks do not require decorative polishing. The main requirement is deburring, local grinding, flash removal, passage cleanup and edge rounding.
Q5: How are cylinder bores and bearing areas protected during grinding?
Cylinder bores, main bearing areas, sealing faces and precision holes are protected through fixture positioning, robot path planning and no-grind zones. The robot processes only the required edge or residue area while keeping abrasive tools away from critical functional surfaces.
Q6: Can one robotic cell handle different cylinder block models?
Yes. One robotic cell can often handle different aluminum alloy engine cylinder block models if the fixture, robot reach and tooling are designed for part variation. Different robot programs can be saved for different cylinder counts, bore layouts or part numbers.
Conclusion
Aluminum alloy engine cylinder blocks have cylinder bore openings, crankcase cavities, water jacket openings, oil passages, mounting holes, ribs and large outer contours, making manual deburring and grinding difficult to standardize. A robotic deburring and grinding solution helps manufacturers remove burrs, flash, sharp edges and local residues while improving consistency and protecting critical engine functional surfaces.
If your engine cylinder block production still relies on manual bore edge deburring, passage cleanup, crankcase edge finishing or local casting residue grinding, Contact Us for a customized robotic solution. You can also explore our Automotive & EV applications and Equipment to learn more about our robotic finishing systems.
