Aluminum Alloy Cylinder Block Skirt Frame Robotic Deburring and Grinding Solution

Aluminum alloy cylinder block skirt frames are structural casting components used in automotive engine and powertrain systems. Based on the sample workpiece, this part includes a large open frame structure, multiple window openings, mounting holes, reinforced ribs, bosses, outer flanges and recessed cavity areas, making post-casting deburring and grinding more difficult than simple aluminum castings.

This robotic deburring and grinding solution is designed for aluminum alloy cylinder block skirt frames with typical dimensions around 400–600 mm in length, depending on the specific engine model. It helps remove burrs, casting flash, parting lines, sharp edges and gate residues from window openings, outer contours, mounting holes, rib transitions and recessed cavity edges while improving finishing consistency and reducing manual grinding workload.

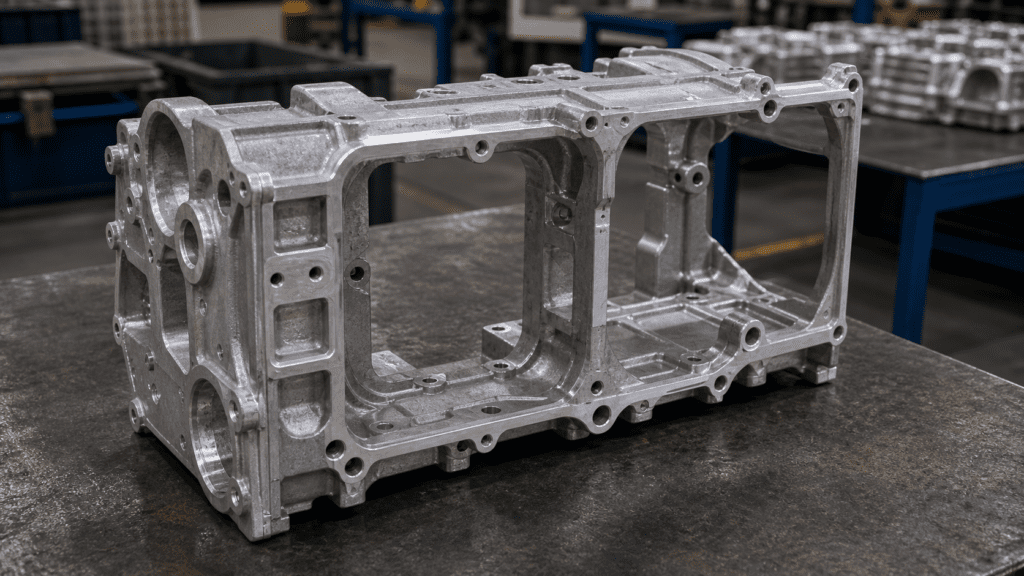

What Is an Aluminum Alloy Cylinder Block Skirt Frame?​

An aluminum alloy cylinder block skirt frame is a structural casting used around the lower engine block or crankcase support area. It helps reinforce the engine structure, support bearing-related areas and connect with other powertrain components through mounting holes, flanges and fitting surfaces.

Based on the sample image, this workpiece has a rectangular open-frame layout with large internal windows, dense reinforcing ribs, multiple bolt holes, raised bosses and irregular outer contours. After casting and trimming, burrs, flash, parting lines, gate residues or sharp edges may remain around the window edges, outer perimeter, hole openings, rib roots and cavity transitions. For this type of workpiece, the main finishing requirement is robotic deburring, local grinding and edge rounding rather than decorative polishing.

Typical Finishing Challenges of Aluminum Alloy Cylinder Block Skirt Frame

An aluminum alloy cylinder block skirt frame is more difficult to finish than a simple flat casting because it contains many open windows, narrow rib structures, hole groups, bosses and functional surfaces. Burrs are not concentrated in one area but distributed across outer edges, internal openings, rib intersections, hole boundaries and recessed transitions.

Manual deburring can be inconsistent because operators must frequently change tool posture and grinding pressure. The thin rib areas and internal window edges are easy to miss, while functional surfaces close to burr areas may be damaged if the operator applies excessive force. Since aluminum alloy is softer than cast iron, over-grinding may also cause unwanted tool marks or local material removal.

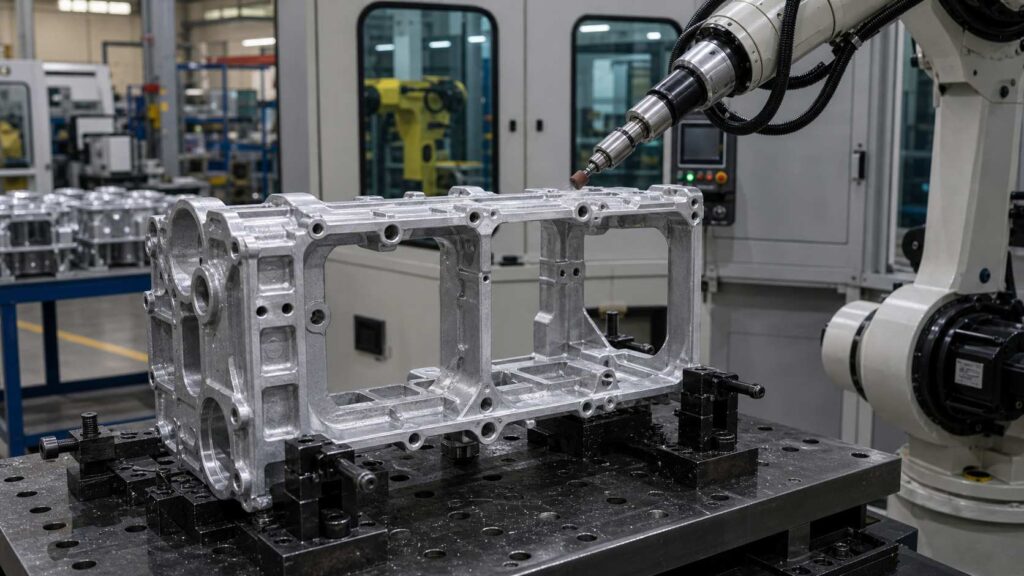

Robotic Deburring and Grinding Process for Aluminum Alloy Cylinder Block Skirt Frame

A robotic deburring and grinding cell for aluminum alloy cylinder block skirt frames should be designed around fixture stability, multi-angle accessibility, controlled contact force and protected-surface control. The process must remove burrs, flash, parting lines and gate residues from the complex frame structure while avoiding damage to mounting faces, sealing surfaces and precision fitting areas.

For aluminum alloy cylinder block skirt frames with typical dimensions around 400–600 mm in length, the process usually includes workpiece positioning, program selection, protected-area confirmation, outer contour grinding, window and hole edge deburring, rib transition finishing, quality inspection and unloading. Different tools may be used for different areas, including abrasive grinding tools, flexible deburring tools, chamfering tools and small grinding heads.

Step 1: Loading and Positioning

The aluminum alloy cylinder block skirt frame is loaded into a dedicated fixture that supports the casting from stable non-critical areas. Because the workpiece has large open windows, thin ribs and an irregular outer profile, stable clamping is important to prevent vibration during deburring and grinding.

The fixture should allow the robot to reach the outer contour, internal window edges, mounting holes and rib transitions without repeated manual repositioning. Good positioning accuracy also helps the robot maintain a safe distance from protected mounting faces and machined interfaces.

Step 2: Program Selection

After loading, the operator selects the correct robot program through the HMI. This is useful when the same robotic cell handles similar cylinder block skirt frame models with different window shapes, hole positions or rib layouts.

The selected program defines the tool path, processing order, robot posture, tool speed, feed rate and protected zones. Saved programs help improve repeatability and reduce dependence on operator experience during repeated production batches.

Step 3: Protected Area Confirmation

Before the robot starts grinding, the system confirms which areas must not be touched by the abrasive tool. For a cylinder block skirt frame, protected areas usually include mounting faces, sealing surfaces, precision holes, bearing-related interfaces and machined fitting surfaces.

This step is critical because many burrs are located very close to functional areas. The robot should remove burrs from edge boundaries and local transitions while avoiding contact with surfaces that affect assembly accuracy or sealing performance.

Step 4: Outer Contour Grinding

The robot first processes the outer contour of the skirt frame, where casting flash, trimming marks and parting line residues are commonly found. These edges may include straight sections, curved corners, local protrusions and flange transitions.

An abrasive grinding tool can follow the programmed contour path and remove raised defects from repeated edge areas. For aluminum alloy castings, grinding pressure should be controlled to avoid cutting into the base material or creating deep tool marks on the casting surface.

Step 5: Window and Hole Edge Deburring

The large internal windows and multiple mounting holes are major deburring areas on this workpiece. Burrs around these openings can create handling risks and may affect downstream assembly or machining preparation.

A flexible deburring tool or chamfering tool can be used to process the window edges and hole openings. The robot should approach each edge with the correct tool angle, especially around narrow windows, round holes and irregular cutouts. This allows the cell to remove sharp edges while maintaining the original geometry of the aluminum casting.

Step 6: Rib and Boss Transition Finishing

The reinforced ribs, raised bosses and recessed cavity transitions are more difficult to process than exposed outer edges. Burrs often remain at rib roots, boss boundaries and narrow corner areas where manual operators may miss small defects.

A small grinding head or compliant deburring tool can be used for these local features. The robot can divide the inner structure into several processing zones and finish each rib or boss transition with repeatable posture. This improves consistency in areas where manual deburring is usually unstable.

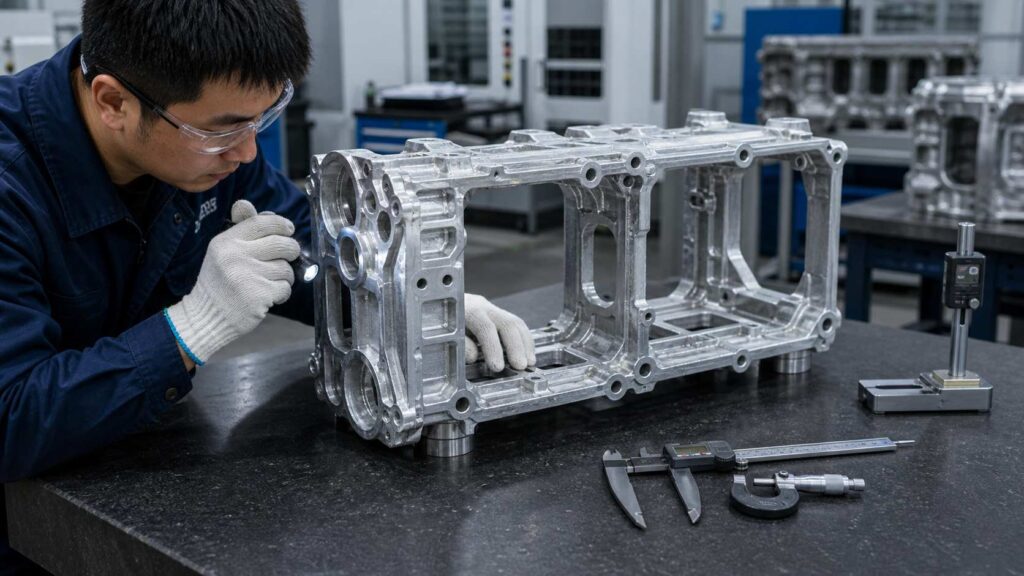

Step 7: Quality Inspection

After robotic deburring and grinding, the operator checks the outer contour, window openings, mounting holes, rib transitions, boss edges and gate-cut areas. The inspection confirms that visible burrs and sharp edges have been removed and that protected surfaces remain undamaged.

Depending on the production requirements, visual inspection can be combined with manual touch checks, sample gauge checks or camera-based inspection. For repeated part models, inspection results can also help optimize tool life, path compensation and local process parameters.

Step 8: Unloading and Cleaning

After inspection, the finished cylinder block skirt frame is unloaded and transferred to the next production process. Aluminum chips, dust and fine particles should be removed from window openings, hole edges and recessed cavity areas.

An enclosed robotic cell with dust collection is recommended for aluminum alloy grinding and deburring. It helps reduce airborne dust, improve workshop cleanliness and create a more controlled finishing environment than open manual grinding.

Machining Difficulties and Solutions

Difficulty 1: Long and Irregular Outer Contour

The aluminum alloy cylinder block skirt frame has a long outer perimeter with straight edges, curved corners, local protrusions and flange transitions. Flash and parting line residues often appear along these areas after casting and trimming.

The solution is to use a programmed robotic contour-grinding path. This allows the robot to follow the irregular frame boundary with stable tool contact while reducing manual variation and avoiding unnecessary material removal from the aluminum casting.

Difficulty 2: Large Window Opening Edge Burrs

The sample workpiece includes large internal window openings that create long inner edge boundaries. These edges often retain burrs or sharp corners, especially around window intersections and narrow internal transitions.

The solution is to use a flexible deburring tool with controlled contact pressure. The robot can follow each window profile and remove burrs from the inner edge without changing the original opening shape or damaging nearby rib structures.

Difficulty 3: Multiple Mounting Holes and Boss Edges

Cylinder block skirt frames usually contain many mounting holes, raised bosses and local circular features. Burrs around these areas may affect assembly preparation, bolt seating or handling safety.

The solution is to use a chamfering tool, flexible deburring spindle or small abrasive tool for local hole-edge treatment. The robot can process repeated holes with the same approach angle and tool depth, improving consistency across the whole workpiece.

Difficulty 4: Rib Roots and Recessed Transitions

Reinforced ribs are important structural features, but they also create narrow intersections and recessed corners. Burrs at rib roots are difficult for manual operators to reach consistently, especially when the rib direction changes across the frame.

The solution is to divide the rib structure into local finishing zones. A small grinding head or compliant deburring tool can access rib roots and corner transitions with controlled posture, reducing missed burrs in hidden areas.

Difficulty 5: Protecting Functional Surfaces

The skirt frame includes mounting faces, sealing surfaces, precision holes and bearing-related interfaces that must not be damaged during grinding. These functional areas may be close to burr-prone edges, making manual finishing risky.

The solution is to define no-grind zones in the robot program and fixture reference system. The robot removes burrs from the surrounding edge areas while keeping the tool away from protected interfaces that affect assembly accuracy.

Manufacturing Case

Thông tin về khách hàng

An automotive aluminum casting manufacturer produces cylinder block skirt frames for engine and powertrain applications. Before automation, operators manually removed burrs, flash, sharp edges and gate residues from the outer frame, window openings, mounting holes and rib transitions after casting.

As production volume increased, manual deburring became difficult to standardize. Some operators removed too much material from exposed edges, while hidden rib and window areas were sometimes under-processed. The customer wanted to improve finishing consistency, reduce manual grinding workload and make repeated batches more stable.

Những thách thức kỹ thuật

The workpiece had a large open-frame structure with multiple internal windows, reinforced ribs, bosses, hole groups and irregular outer contours. Burrs appeared on both the outer perimeter and the internal opening edges, which required different tool angles and processing methods.

Some gate-cut areas required heavier material removal, while mounting faces, sealing surfaces and precision holes needed to be protected. The main challenge was to remove burrs from many repeated edges without damaging functional surfaces or creating obvious grinding marks on the aluminum casting.

Giải pháp

The proposed solution used a six-axis industrial robot, a dedicated skirt frame support fixture and multiple deburring tools. The robot used an abrasive grinding tool for outer contour flash and parting line cleanup, a flexible deburring tool for window openings, a chamfering tool for hole edges and a small grinding head for rib roots and boss transitions.

Protected surfaces were defined in the robot program as no-grind zones. The fixture held the workpiece in a stable position and allowed the robot to reach both outer and internal features. The workstation was designed as an enclosed cell with dust collection to control aluminum chips and grinding particles.

Kết quả triển khai

The robotic cell took over repetitive deburring and grinding work on the outer contour, window openings, mounting holes, rib transitions, boss edges and gate-cut areas. Operators mainly handled loading, unloading, inspection and tool maintenance, which reduced direct manual grinding intensity and made repeated batches more stable.

The enclosed cell also improved dust control during aluminum alloy casting finishing. Instead of open manual grinding around the workpiece, aluminum chips and particles were collected inside the workstation, helping create a cleaner and more controlled finishing area.

Phản hồi của khách hàng

The customer reported that the robotic deburring and grinding cell made repeated cylinder block skirt frame finishing more stable and reduced the manual effort required for window edge, hole edge and contour cleanup. Operators could focus more on part handling, inspection and tool monitoring instead of continuous manual deburring.

Information Needed for a Robotic Grinding Proposal

To recommend a suitable robotic deburring and grinding cell for your aluminum alloy cylinder block skirt frame, we usually need the part drawing, material grade, casting weight, photos of burrs, flash, parting lines or gate residues, required deburring areas, protected surfaces, current manual cycle time and annual production volume.

These details help our engineering team evaluate fixture design, robot reach, tool selection, dust collection layout and process feasibility. For aluminum alloy engine structural castings, it is especially important to identify which areas require material removal and which mounting, sealing or precision interfaces must be protected during robotic grinding.

Câu hỏi thường gặp

Q1: Is this workpiece a cylinder block skirt frame?​

Yes. Based on the sample structure, this workpiece can be described as an aluminum alloy cylinder block skirt frame. It has typical features such as a large open-frame layout, multiple internal windows, mounting holes, reinforced ribs, bosses and irregular outer contours.

Q2: Why is robotic deburring suitable for this workpiece?​

Robotic deburring is suitable because the workpiece has many repeated edges, holes, window openings and rib transitions. A robot can follow programmed paths with stable tool posture and contact pressure, which helps improve consistency compared with manual deburring.

Q3: What areas can the robot process on a cylinder block skirt frame?​

The robot can process the outer contour, internal window edges, mounting hole edges, boss boundaries, rib roots, recessed cavity transitions, gate-cut areas and parting line positions. The exact processing areas should be confirmed according to the drawing and actual burr distribution.

Q4: Does this aluminum alloy part require polishing?​

In most cases, this part does not require decorative polishing. The main requirement is deburring, edge rounding, local grinding and surface cleanup. The purpose is to remove burrs, flash and sharp edges while protecting functional surfaces.

Q5: How are protected surfaces controlled during grinding?​

Protected surfaces are controlled through fixture positioning, robot path planning and no-grind zones in the program. Mounting faces, sealing surfaces, bearing-related interfaces and precision holes are excluded from grinding paths to reduce the risk of damage.

Q6: Can one robotic cell handle similar skirt frame models?​

Yes. One robotic cell can often handle similar cylinder block skirt frame models if the fixture, robot reach and tool system are designed for part variation. Different robot programs can be saved for different models or part numbers.

Kết luận

Aluminum alloy cylinder block skirt frames have large open windows, long outer contours, mounting holes, bosses, ribs and recessed transitions, making manual deburring difficult to standardize. A robotic deburring and grinding solution helps manufacturers remove burrs, flash, parting lines and gate residues while improving finishing consistency and protecting key functional areas.

If your cylinder block skirt frame production still relies on manual window edge deburring, hole edge cleanup or outer contour grinding, Liên hệ với chúng tôi for a customized robotic solution. You can also explore our Ô tô & Xe điện applications and Thiết bị to learn more about our robotic finishing systems.
